0127 Wilwood 45mm Brake Bleeder Kit – Pump Tank + Adapter

The Motive Products 0127 Wilwood 45mm Bleeder Kit is the complete system for Wilwood-equipped vehicles: a Motive pressure pump tank, chemical-resistant supply hose, and the dedicated Wilwood 45mm adapter for round Wilwood reservoirs with a 43mm ID cap. Everything you need for one-person, pressurized brake bleeding on track cars, performance street builds, and any vehicle running Wilwood master cylinders.

Vehicle Fitment

Designed for vehicles with Wilwood master cylinders and remote reservoirs using the round 43mm ID cap:

• Race cars and track-day builds – any class or platform running Wilwood master cylinders
• Performance street cars with Wilwood brake system upgrades and round reservoirs
• Custom and kit-car applications using Wilwood 43mm round reservoir caps

This kit uses the 45mm adapter thread to engage the 43mm ID Wilwood cap. For the adapter-only version, see the 1127.

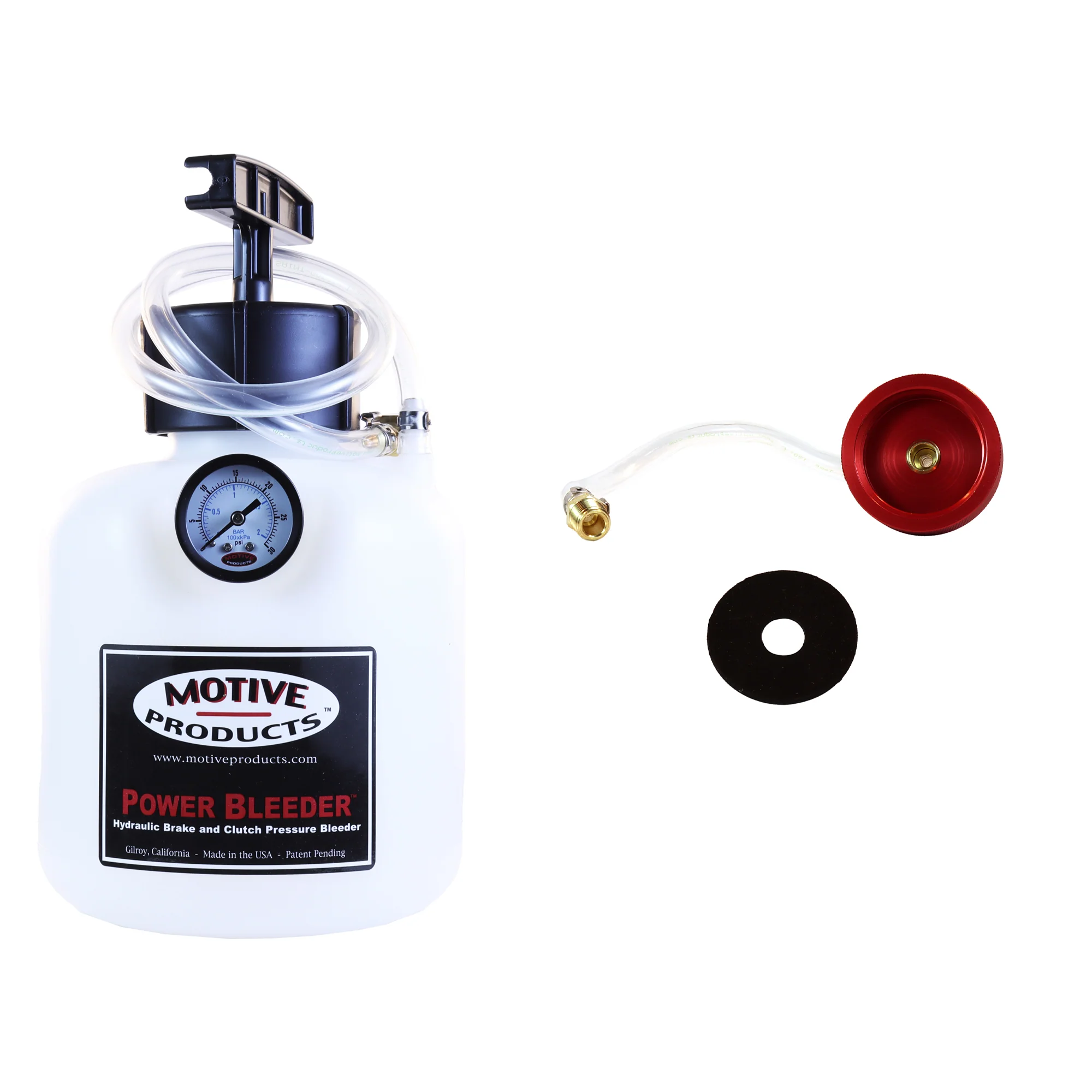

Kit Contents & Key Features

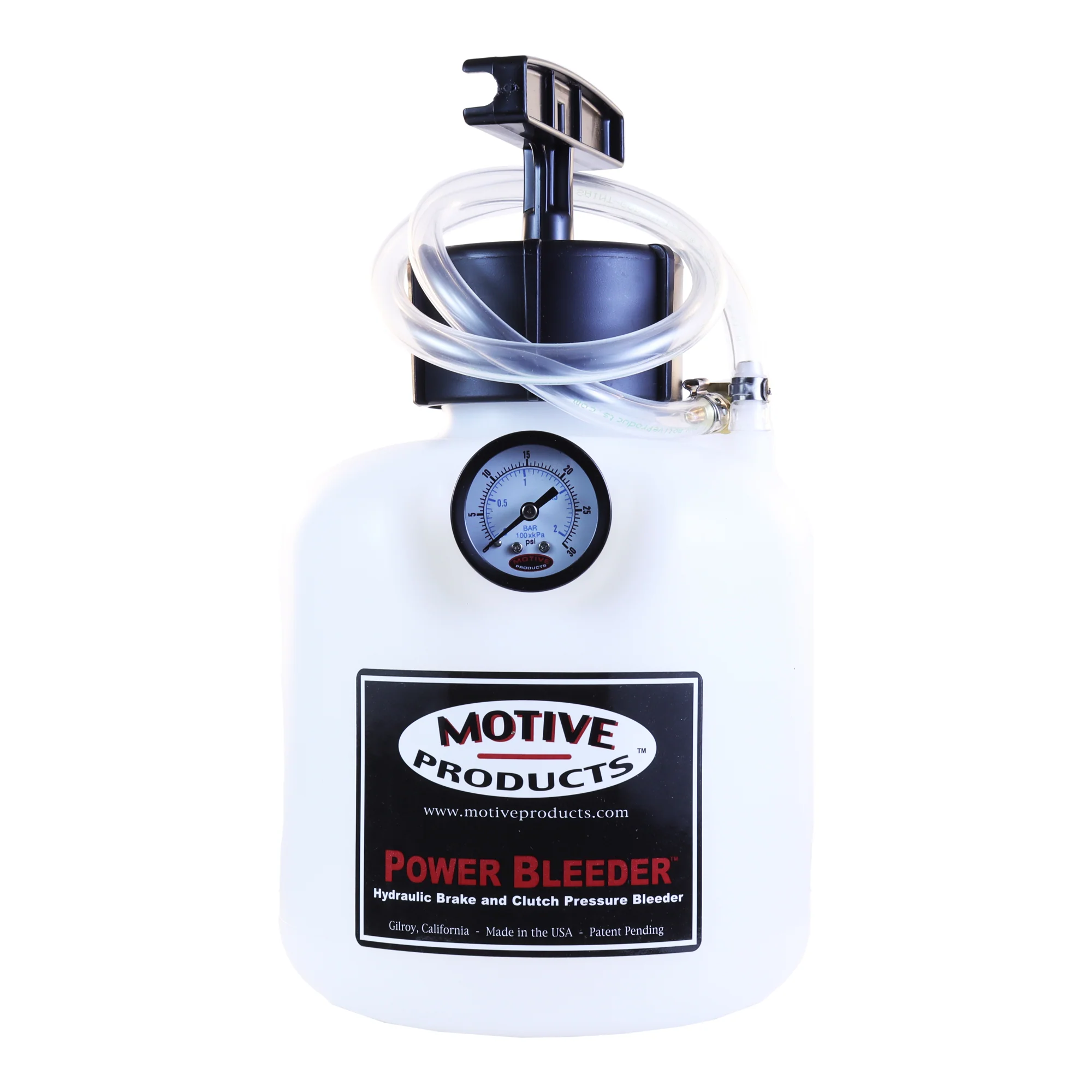

• Motive Pressure Tank – corrosion-proof reservoir with hand pump and gauge; no air compressor required.

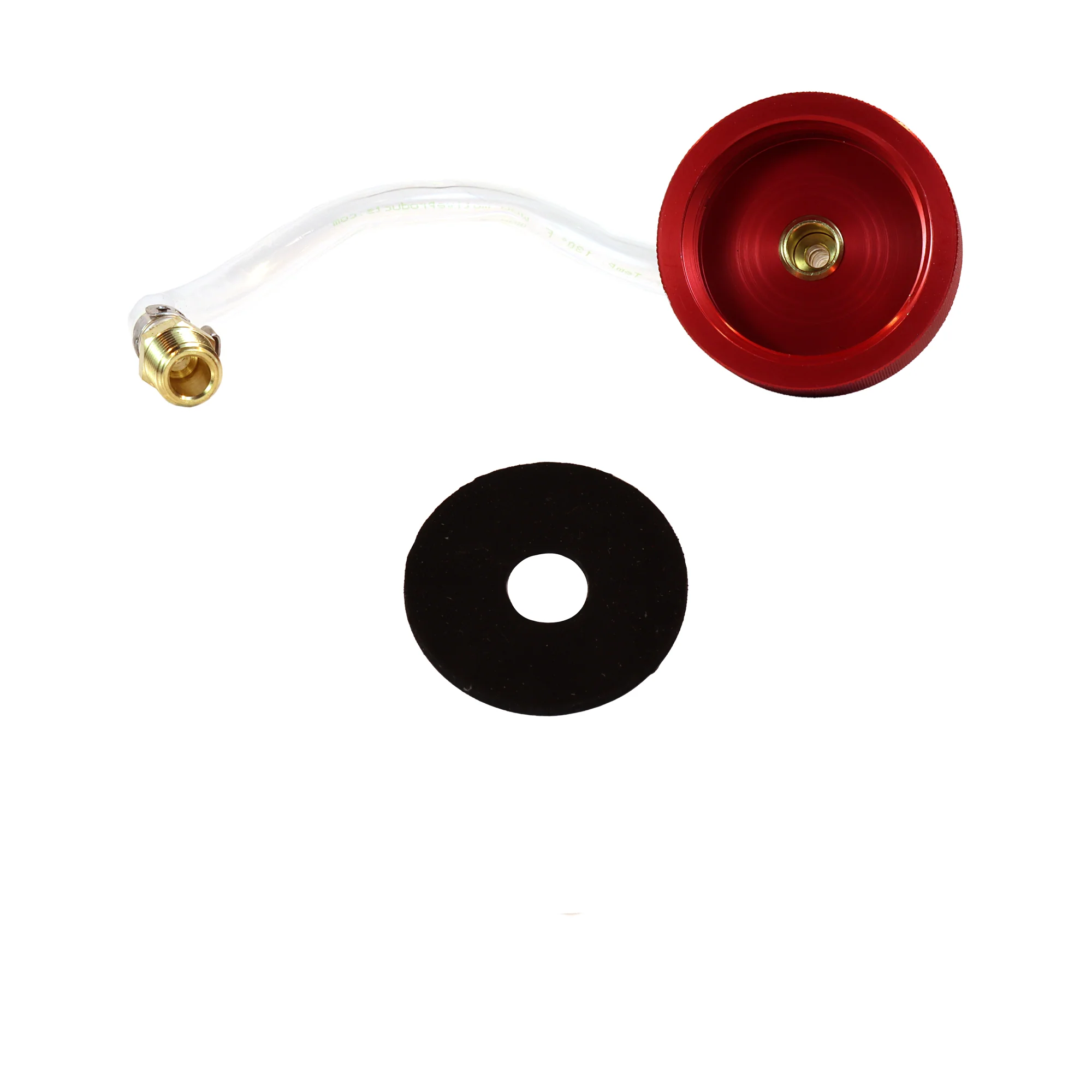

• Wilwood 45mm Adapter – threads into the 43mm ID round Wilwood reservoir cap for a leak-free seal at 15–20 psi.
• Chemical-Resistant Supply Hose – connects tank to adapter; resists DOT 4 and DOT 5.1 racing brake fluid.
• True One-Person Operation – pressurize, open bleeders, done; no second mechanic or lever pumping.

How to Use

Thread the Wilwood 45mm adapter into the reservoir cap, fill the Motive tank with fresh brake fluid, connect the quick-disconnect, and pump to 15–20 psi. Open each caliper bleeder in sequence until clean, bubble-free fluid flows. Swap fluid between every track session for fade-free brake performance.
